View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XDSSH12 283898 Y7-283898 EATON ELECTRIC Power Distribution Components Enclosure Systems
XDSSH12
283898
Y7-283898
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XDSSH12

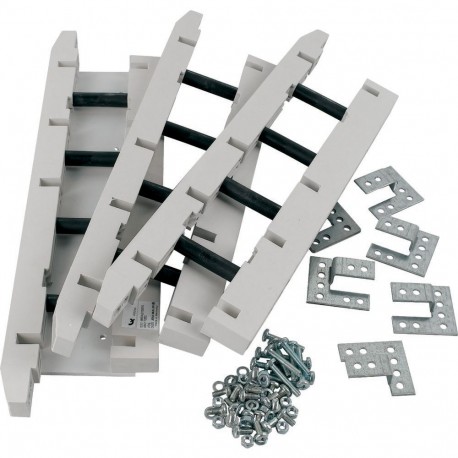

Mounting kit, for dropper bar, PIFT, horizontal, 1200A, 3p
Mounting kit, for dropper bar, PIFT, horizontal, 1200A, 3p, including fixing material
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283898
Model Code
XDSSH12
EAN
4015082838980
Product Length/Depth
600 mm
Product Height
80 mm
Product Width
140 mm
Product Weight
3.8 kg
Compliances
RoHS conform
Product specifications
Color
White
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 140 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 600 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Plastic |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 0 |
