XDSSH10 283897 Y7-283897 EATON ELECTRIC Power Distribution Components Enclosure Systems
XDSSH10
283897
Y7-283897
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XDSSH10

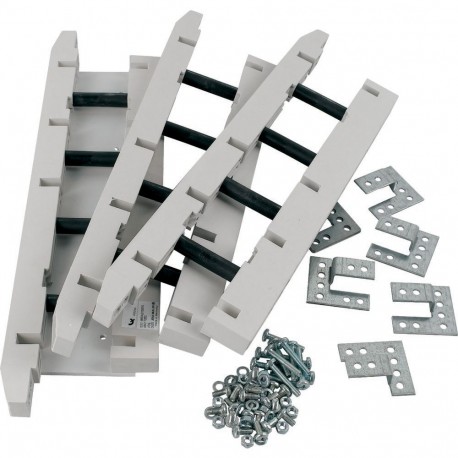

Eaton xEnergy Main LV systems LV switchgear. Mounting kit, for dropper bar, PIFT, horizontal, 1000A, 3p
Mounting kit, for dropper bar, PIFT, horizontal, 1000A, 3p, including fixing material
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283897
Model Code
XDSSH10
EAN
4015082838973
Product Length/Depth
50 mm
Product Height
95 mm
Product Width
495 mm
Product Weight
2.2 kg
Compliances
RoHS conform
Product specifications
Color
White
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 495 mm |
| Height (EF000040) | 95 mm |
| Depth (EF000049) | 50 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Plastic |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 0 |
