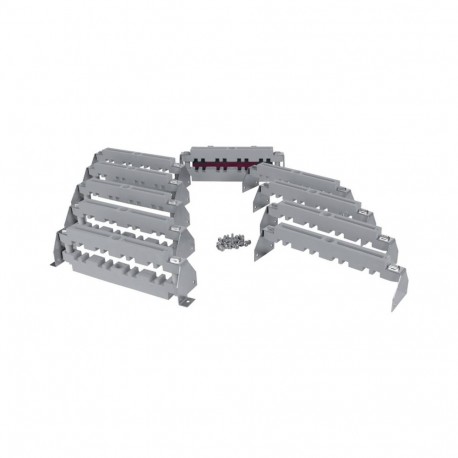

XDSF20-65-MC 151206 Y7-151206 EATON ELECTRIC Busbar support set, for dropper bar, 3/4p, 2000A, 65kA
XDSF20-65-MC
151206
Y7-151206
EATON - MOELLER
1 Pcs.
Busbar support set, for dropper bar, 3/4p, 2000A, 65kA
XDSF20-65-MC
Eaton xEnergy Main LV systems LV switchgear. Busbar support set, for dropper bar, 3/4p, 2000A, 65kA
2000-A dropper bar support kit, short-circuit strength 65 kA, dimension 2 x 40 x 10 mm, consisting of: busbar supports - full and half versions, includes end busbar supports, inserts for closing off the second bar line in the carrier, includes all screw accessories, incl. fixing brackets
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller busbar support set safely isolates and anchors high-current dropper busbar systems within heavy electrical distribution panels.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Suitable for enclosure building width (EF000326): 0 mm
- Suitable for enclosure building height (EF009583): 0 mm
- Suitable for enclosure building depth (EF000327): 0 mm
- Width (EF000008): 200 mm
- Height (EF000040): 170 mm
- Depth (EF000049): 350 mm
- Max. load capacity (EF000258): 0 kg
- Material (EF002169): Plastic
- Colour (EF000007): Green
- RAL-number (EF000116): 0
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151206
Model Code
XDSF20-65-MC
EAN
4015081480012
Product Length/Depth
350 mm
Product Height
170 mm
Product Width
200 mm
Product Weight
5.5 kg
Compliances
RoHS conform
Product specifications
Color
Green
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other
