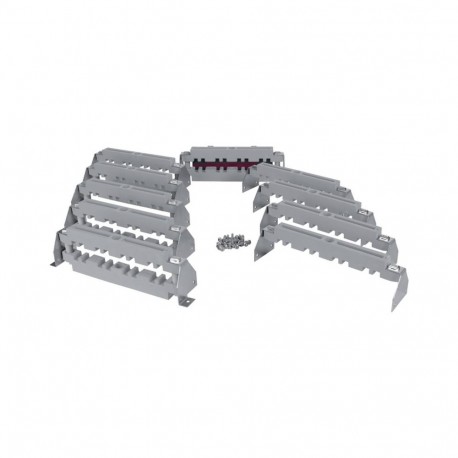

EATON - MOELLER XDSF20-35-MC XDSF20-35-MC 151204 Y7-151204 EATON ELECTRIC Busbar support set, for dropper bar, 3/4p, 2000A, 35kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XDSF20-35-MC 151204 Y7-151204 EATON ELECTRIC Busbar support set, for dropper bar, 3/4p, 2000A, 35kA

XDSF20-35-MC

151204

Y7-151204

EATON - MOELLER

1 Pcs.

Busbar support set, for dropper bar, 3/4p, 2000A, 35kA XDSF20-35-MC Eaton xEnergy Main LV systems LV switchgear. Busbar support set, for dropper bar, 3/4p, 2000A, 35kA 2000-A dropper bar support kit, short-circuit strength 35 kA, dimension 2 x 40 x 10 mm, consisting of: busbar supports - full and half versions, includes end busbar supports, inserts for closing off the second bar line in the carrier, includes all screw accessories, incl. fixing brackets

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Busbar support sets like the Eaton Moeller XDSF20-35-MC securely anchor and insulate primary copper busbars inside high-capacity switchgear panels. They maintain precise mechanical spacing to withstand short-circuit electromagnetic forces within heavy electrical networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 200 mm
  • Height (EF000040): 130 mm
  • Depth (EF000049): 350 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Plastic
  • Colour (EF000007): Green
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151204
Model Code
XDSF20-35-MC
EAN
4015081474790
Product Length/Depth
350 mm
Product Height
130 mm
Product Width
200 mm
Product Weight
4.5 kg
Compliances
RoHS conform

Product specifications

Color
Green
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
