View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XDSF16E 283893 Y7-283893 EATON ELECTRIC Power Distribution Components Enclosure Systems
XDSF16E
283893
Y7-283893
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XDSF16E

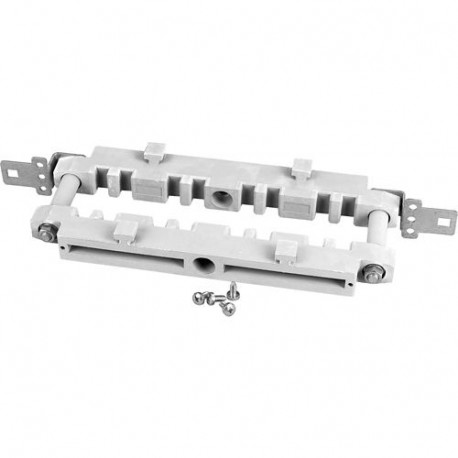

Eaton xEnergy Main LV systems LV switchgear. End bracket for dropper bar, 60mm, 1600A, 3/4C
End bracket for dropper bar, 60mm, 1600A, 3/4C
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283893
Model Code
XDSF16E
EAN
4015082838935
Product Length/Depth
320 mm
Product Height
40 mm
Product Width
150 mm
Product Weight
0.9 kg
Compliances
Contact Manufacturer
RoHS conform
RoHS conform
Certifications
Contact Manufacturer
Product specifications
Color
Green
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 150 mm |
| Height (EF000040) | 40 mm |
| Depth (EF000049) | 320 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Plastic |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 0 |
