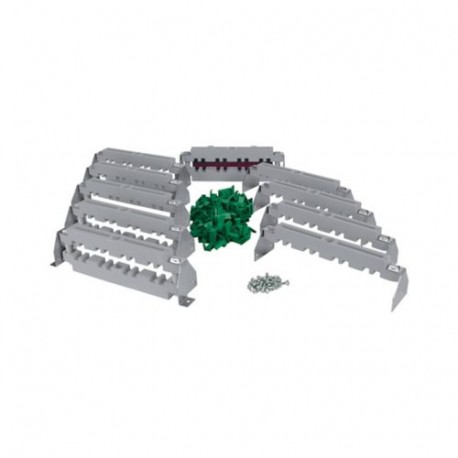

EATON - MOELLER XDSF10-65-MC XDSF10-65-MC 151202 Y7-151202 EATON ELECTRIC Busbar support set, for dropper bar, 3/4p, 1000A, 65kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XDSF10-65-MC 151202 Y7-151202 EATON ELECTRIC Busbar support set, for dropper bar, 3/4p, 1000A, 65kA

XDSF10-65-MC

151202

Y7-151202

EATON - MOELLER

1 Pcs.

Busbar support set, for dropper bar, 3/4p, 1000A, 65kA XDSF10-65-MC Eaton xEnergy Main LV systems LV switchgear. Busbar support set, for dropper bar, 3/4p, 1000A, 65kA 1000-A dropper bar support kit, short-circuit strength 65 kA, dimension 1 x 40 x 10 mm, consisting of: busbar supports - full and half versions, includes end busbar supports, inserts for closing off the second bar line in the carrier, includes all screw accessories, incl. fixing brackets

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XDSF10-65-MC 151202 Y7-151202 Busbar support set, for dropper bar, 3/4p, 1000A, 65kA is utilized in power distribution switchgear to securely mount and insulate primary copper busbars.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 200 mm
  • Height (EF000040): 180 mm
  • Depth (EF000049): 350 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Plastic
  • Colour (EF000007): Green
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151202
Model Code
XDSF10-65-MC
EAN
4015081474776
Product Length/Depth
350 mm
Product Height
180 mm
Product Width
200 mm
Product Weight
5.5 kg
Compliances
RoHS conform

Product specifications

Color
Green
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other
