EATON - MOELLER XDSF10-50-MC XDSF10-50-MC 151201 Y7-151201 EATON ELECTRIC Busbar support set, for dropper bar, 3/4p, 1000A, 50kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XDSF10-50-MC 151201 Y7-151201 EATON ELECTRIC Busbar support set, for dropper bar, 3/4p, 1000A, 50kA

XDSF10-50-MC

151201

Y7-151201

EATON - MOELLER

1 Pcs.

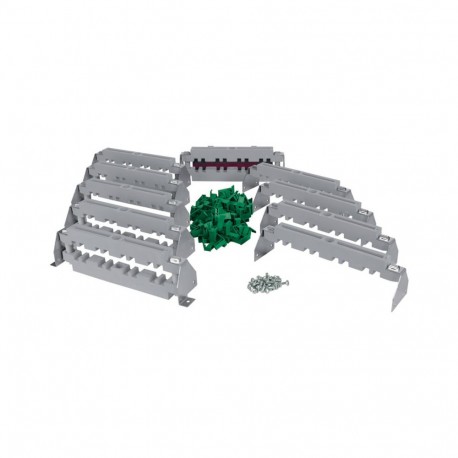

Busbar support set, for dropper bar, 3/4p, 1000A, 50kA XDSF10-50-MC Eaton xEnergy Main LV systems LV switchgear. Busbar support set, for dropper bar, 3/4p, 1000A, 50kA 1000-A dropper bar support kit, short-circuit strength 50 kA, dimension 1 x 40 x 10 mm, consisting of: busbar supports - full and half versions, includes end busbar supports, inserts for closing off the second bar line in the carrier, includes all screw accessories, incl. fixing brackets

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An EATON ELECTRIC Busbar support set, for dropper bar, 3/4p, 1000A, 50kA physically holds and insulates copper distribution bars within high-current electrical switchgear assemblies. Busbar supports maintain proper phase separation and withstand high electrodynamic forces generated during short-circuit events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 200 mm
  • Height (EF000040): 180 mm
  • Depth (EF000049): 350 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Plastic
  • Colour (EF000007): Green
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151201
Model Code
XDSF10-50-MC
EAN
4015081474769
Product Length/Depth
350 mm
Product Height
180 mm
Product Width
200 mm
Product Weight
5.5 kg
Compliances
RoHS conform

Product specifications

Color
Green
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
