View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XDSF08E 283889 Y7-283889 EATON ELECTRIC Power Distribution Components Enclosure Systems
XDSF08E
283889
Y7-283889
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XDSF08E

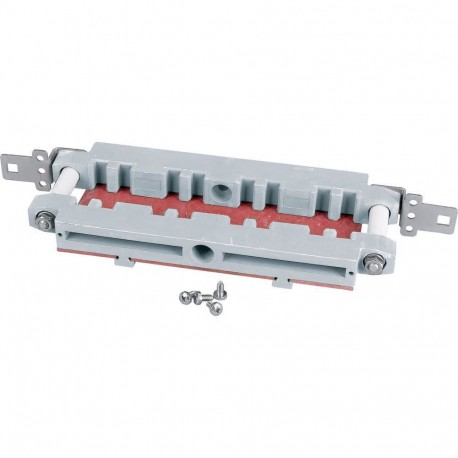

Eaton xEnergy Main LV systems LV switchgear. End bracket for dropper bar, 60mm, 800A, 3/4C
End bracket for dropper bar, 60mm, 800A, 3/4C
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283889
Model Code
XDSF08E
EAN
4015082838898
Product Length/Depth
320 mm
Product Height
40 mm
Product Width
150 mm
Product Weight
0.7 kg
Compliances
RoHS conform
Product specifications
Color
Green
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
2000 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 150 mm |
| Height (EF000040) | 40 mm |
| Depth (EF000049) | 320 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Plastic |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 0 |
