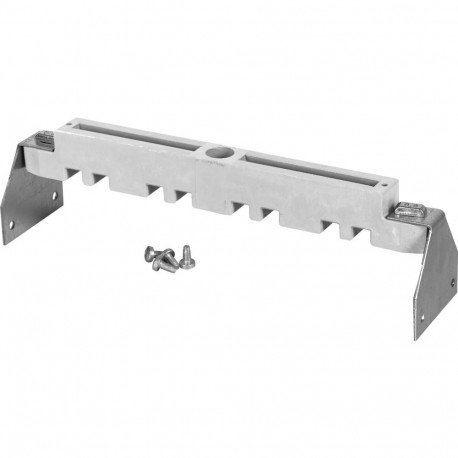

EATON - MOELLER XDSF-H-E-MC XDSF-H-E-MC 151208 Y7-151208 EATON ELECTRIC Dropper busbar bracket, 65kA, half version View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XDSF-H-E-MC 151208 Y7-151208 EATON ELECTRIC Dropper busbar bracket, 65kA, half version

XDSF-H-E-MC

151208

Y7-151208

EATON - MOELLER

1 Pcs.

Dropper busbar bracket, 65kA, half version XDSF-H-E-MC Eaton xEnergy Main LV systems LV switchgear. Dropper busbar bracket, 65kA, half version Single dropper bar support, half busbar support version can be used for up to 65 kA, includes fixing brackets and screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XDSF-H-E-MC is a dropper busbar bracket engineered to securely support vertical distribution busbars while maintaining high short-circuit current ratings in electrical switchgear. Busbar brackets provide essential mechanical spacing and insulation between live current-carrying bars and enclosure frames. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 75 mm
  • Height (EF000040): 75 mm
  • Depth (EF000049): 350 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Plastic
  • Colour (EF000007): Green
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151208
Model Code
XDSF-H-E-MC
EAN
4015081480036
Product Length/Depth
350 mm
Product Height
75 mm
Product Width
75 mm
Product Weight
0.5 kg
Compliances
RoHS conform

Product specifications

Color
Green
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
