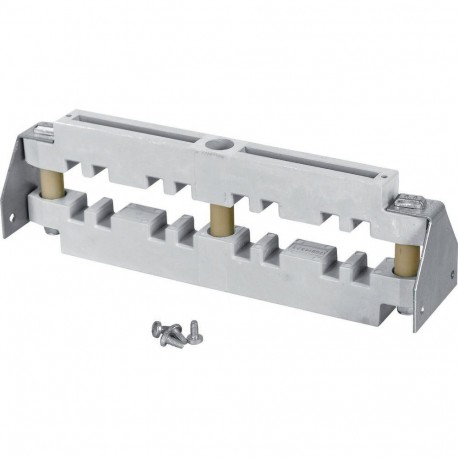

EATON - MOELLER XDSF-F-80-E-MC XDSF-F-80-E-MC 151210 Y7-151210 EATON ELECTRIC Dropper bar bracket, full version, reinforced, 80 kA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XDSF-F-80-E-MC 151210 Y7-151210 EATON ELECTRIC Dropper bar bracket, full version, reinforced, 80 kA

XDSF-F-80-E-MC

151210

Y7-151210

EATON - MOELLER

1 Pcs.

Dropper bar bracket, full version, reinforced, 80 kA XDSF-F-80-E-MC Eaton xEnergy Main LV systems LV switchgear. Dropper bar bracket, full version, reinforced, 80 kA Single dropper bar support, full busbar support version with additional reinforcement can be used for up to 80 kA, includes fixing brackets and screw accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a dropper bar bracket, full version, reinforced, 80 kA, this Eaton Moeller assembly secures and insulates high-current busbar systems within heavy-duty industrial switchgear. Components of this category are essential for maintaining mechanical rigidity and electrical clearance across busbar distribution layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 100 mm
  • Height (EF000040): 75 mm
  • Depth (EF000049): 350 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Plastic
  • Colour (EF000007): Green
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
151210
Model Code
XDSF-F-80-E-MC
EAN
4015081480050
Product Length/Depth
350 mm
Product Height
75 mm
Product Width
100 mm
Product Weight
0.8 kg
Compliances
RoHS conform

Product specifications

Color
Green
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
