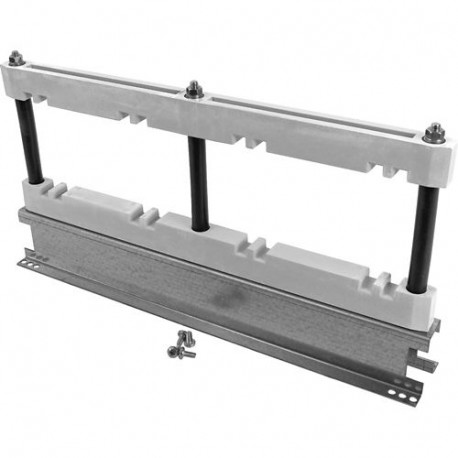

EATON - MOELLER XBST16 XBST16 283876 2472700 EATON ELECTRIC Busbar support, MB top, 125mm, 1600A, 3/4C View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XBST16 283876 2472700 EATON ELECTRIC Busbar support, MB top, 125mm, 1600A, 3/4C

XBST16

283876

2472700

EATON - MOELLER

1 Pcs.

Busbar support, MB top, 125mm, 1600A, 3/4C Busbar support, 125mm, 1600A, 3/4C Busbar support for up to 1600 A for surface mounting, for use with 10-mm slim L1, L2, L3, N bars, busbar distance 125 mm, busbar dimensions of 2 x 60 x 10 mm, max. rated operational current as per type: 1600 A, screws included as standard

Automation > Accessories/spare parts for busbars
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller Busbar support, MB top, 125mm, 1600A, 3/4C, carrying part number XBST16, mechanically positions and isolates main copper busbars inside high-capacity distribution switchboards. Busbar supports withstand severe electrodynamic forces during short-circuit events to protect electrical infrastructure. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲
EL-Nummer (Norway)
2472700
Busbar support, MB top, 125mm, 1600A, 3/4C
Busbar support for up to 1600 A for surface mounting, for use with 10-mm slim L1, L2, L3, N bars, busbar distance 125 mm, busbar dimensions of 2 x 60 x 10 mm, max. rated operational current as per type: 1600 A, screws included as standard

Technical data ETIM 7.0

Energy distribution systems (EG000015) / Accessories for busbars (EC002270)
Electric engineering, automation, process control engineering / Electrical insulation and connecting material / Energy distribution system / Busbar (accessories) ([email protected] [ACO563011])
Type of accessory
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
