View larger
Images are for illustrative purposes only. Please refer to data sheet for details

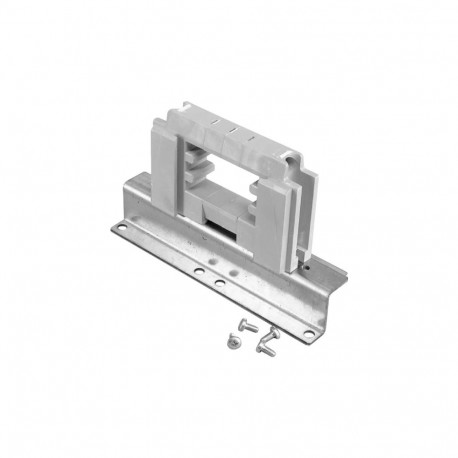

XBSN32 284749 Y7-284749 EATON ELECTRIC Busbar support, MB for N 3200A
XBSN32
284749
Y7-284749
EATON - MOELLER
1 Pcs.
Busbar support, MB for N 3200A
XBSN32
Eaton xEnergy Main LV systems LV switchgear. Busbar support, MB for N 3200A
Busbar support for neutral conductor, includes sheet metal angle brackets and screws, transversal support, hS for N 3200 A, full neutral cross-sectional area: 3 x 80 x 10 mm²
Automation > Busbar support
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284749
Model Code
XBSN32
EAN
4015082847494
Product Length/Depth
250 mm
Product Height
70 mm
Product Width
165 mm
Product Weight
1.12 kg
Compliances
RoHS conform
Product specifications
Accessory/spare part type
Other
Current rating - max
3200 A
Busbar distance
0 mm
Number of poles
Zero-pole
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 0 |
| Max. rated current (EF007926) | 3200 A |
| Busbar distance (EF002638) | 0 mm |
