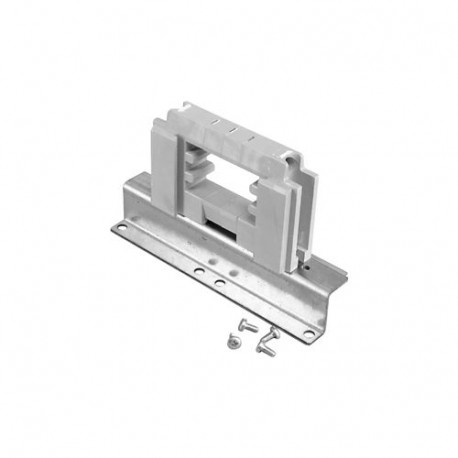

EATON - MOELLER XBSN20 XBSN20 284748 Y7-284748 EATON ELECTRIC Busbar support, MB for N 2000A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XBSN20 284748 Y7-284748 EATON ELECTRIC Busbar support, MB for N 2000A

XBSN20

284748

Y7-284748

EATON - MOELLER

1 Pcs.

Busbar support, MB for N 2000A XBSN20 Eaton xEnergy Main LV systems LV switchgear. Busbar support, MB for N 2000A Busbar support for neutral conductor, includes sheet metal angle brackets and screws, transversal support, hS for N 2000 A, full neutral cross-sectional area: 2 x 60 x 10 mm²

Automation > Busbar support
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
284748
Model Code
XBSN20
EAN
4015082847487
Product Length/Depth
245 mm
Product Height
50 mm
Product Width
150 mm
Product Weight
1.05 kg
Compliances
Contact Manufacturer
RoHS conform

Product specifications

Accessory/spare part type
Other
Current rating - max
2000 A
Busbar distance
0 mm
Number of poles
Zero-pole

ETIM for 284748 Power distribution systems (EC001166)
Feature Name Feature Value
Number of poles (EF001391) 0
Max. rated current (EF007926) 2000 A
Busbar distance (EF002638) 0 mm
