View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XBSB403 283870 Y7-283870 EATON ELECTRIC Power Distribution Components Enclosure Systems
XBSB403
283870
Y7-283870
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XBSB403

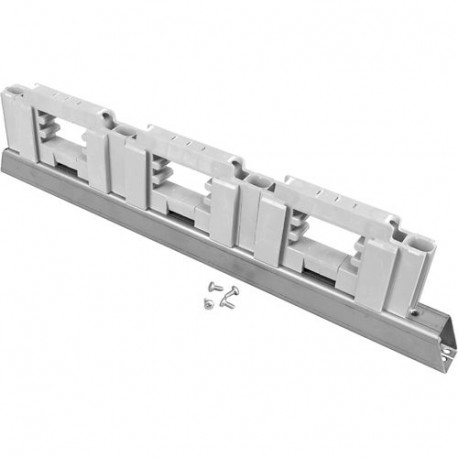

Eaton xEnergy Main LV systems LV switchgear. Busbar support, main busbar back, up to 4000A, 3C
Busbar support, main busbar back, up to 4000A, 3C, including fixing material
Automation > Busbar support
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283870
Model Code
XBSB403
EAN
4015082838706
Product Length/Depth
823 mm
Product Height
50 mm
Product Width
150 mm
Product Weight
3.8 kg
Compliances
RoHS conform
Product specifications
Accessory/spare part type
Other
Current rating - max
4000 A
Busbar distance
180 mm
Number of poles
Three-pole
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Max. rated current (EF007926) | 4000 A |
| Busbar distance (EF002638) | 180 mm |
