View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XBSB324 283869 Y7-283869 EATON ELECTRIC Power Distribution Components Enclosure Systems
XBSB324
283869
Y7-283869
EATON - MOELLER
1 Pcs.
Power Distribution Components Enclosure Systems
XBSB324

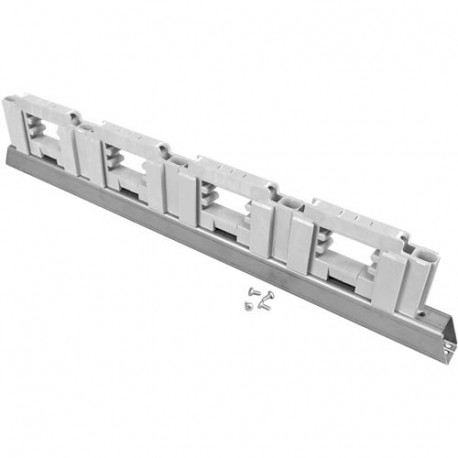

Eaton xEnergy Main LV systems LV switchgear. Busbar support, main busbar back, up to 3200A, 4C
Busbar support, main busbar back, up to 3200A, 4C, including fixing material
Automation > Busbar support
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283869
Model Code
XBSB324
EAN
4015082838690
Product Length/Depth
900 mm
Product Height
55 mm
Product Width
200 mm
Product Weight
4 kg
Compliances
RoHS conform
Product specifications
Accessory/spare part type
Other
Current rating - max
3200 A
Busbar distance
180 mm
Number of poles
Four-pole
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Max. rated current (EF007926) | 3200 A |
| Busbar distance (EF002638) | 180 mm |
