EATON - MOELLER XBSB203 XBSB203 283866 Y7-283866 EATON ELECTRIC Power Distribution Components Enclosure Systems View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XBSB203 283866 Y7-283866 EATON ELECTRIC Power Distribution Components Enclosure Systems

XBSB203

283866

Y7-283866

EATON - MOELLER

1 Pcs.

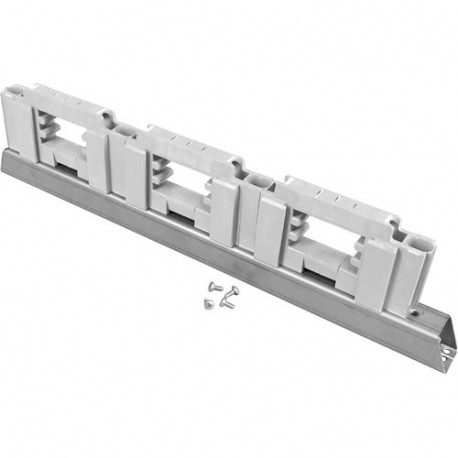

Power Distribution Components Enclosure Systems XBSB203 Eaton xEnergy Main LV systems LV switchgear. Busbar support, main busbar back, up to 2000A, 3C Busbar support, main busbar back, up to 2000A, 3C, including fixing material

Automation > Busbar support
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller XBSB203 power distribution enclosure component provides structured mechanical mounting for 3-phase busbar networks within industrial switchgear housings. This hardware element ensures stable conductor alignment under demanding load conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of poles (EF001391): 3
  • Max. rated current (EF007926): 2000 A
  • Busbar distance (EF002638): 180 mm

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283866
Model Code
XBSB203
EAN
4015082838669
Product Length/Depth
900 mm
Product Height
55 mm
Product Width
200 mm
Product Weight
3.3 kg
Compliances
Contact Manufacturer
RoHS conform
Certifications
IEC 60947
EN 60947

Product specifications

Accessory/spare part type
Other
Current rating - max
2000 A
Busbar distance
180 mm
Number of poles
Three-pole

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
