View larger
Images are for illustrative purposes only. Please refer to data sheet for details

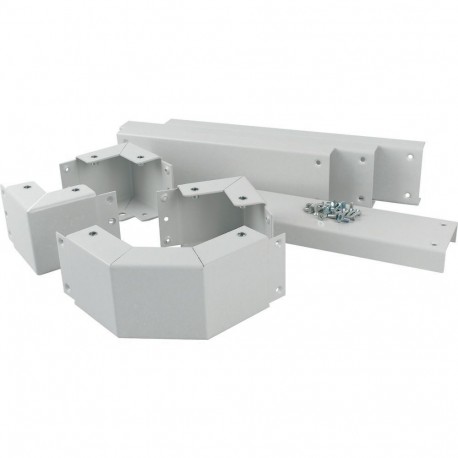

XAP010606C 288868 Y7-288868 EATON ELECTRIC Plinth, corner section, HxWxD 100x650x650mm
XAP010606C
288868
Y7-288868
EATON - MOELLER
1 Pcs.
Plinth, corner section, HxWxD=100x650x650mm
XAP010606C
Eaton xEnergy Main LV systems LV switchgear. Plinth, corner section, HxWxD=100x650x650mm, gray
Complete base for corner section - heavy-duty design (xEnergy) + screws
Automation > Base/base element (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
288868
Model Code
XAP010606C
EAN
4015082888688
Product Length/Depth
610 mm
Product Height
110 mm
Product Width
235 mm
Product Weight
8.2 kg
Compliances
RoHS conform
Product specifications
Color
Gray
Load capacity - max
1500 kg
RAL-number
7035
Suitable for enclosure building length/depth
650 mm
Suitable for enclosure building width
650 mm
Material
Steel
Model
Base complete
Impact strength
IK10
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Base complete |
| Material (EF002169) | Steel |
| Colour (EF000007) | Grey |
| Max. load capacity (EF000258) | 1500 kg |
| Suitable for enclosure building width (EF000326) | 650 mm |
| Suitable for enclosure building depth (EF000327) | 650 mm |
| Suitable for aeration/de-aeration (EF000324) | No |
| Suitable for cable patch (EF007251) | No |
| Width (EF000008) | 235 mm |
| Height (EF000040) | 110 mm |
| Depth (EF000049) | 610 mm |
