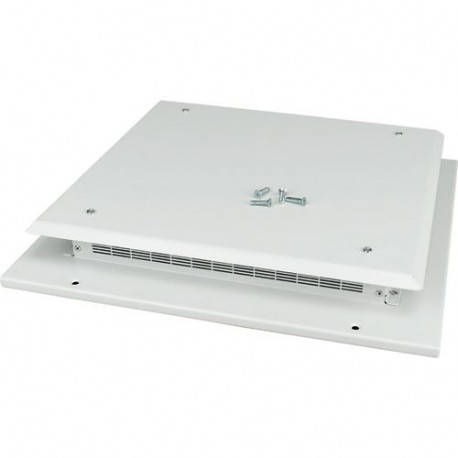

EATON - MOELLER XAD1006 XAD1006 283814 Y7-283814 EATON ELECTRIC Rain protection roof, IP31, for WxD 1000x600mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XAD1006 283814 Y7-283814 EATON ELECTRIC Rain protection roof, IP31, for WxD 1000x600mm

XAD1006

283814

Y7-283814

EATON - MOELLER

1 Pcs.

Rain protection roof, IP31, for WxD=1000x600mm XAD1006 Eaton xEnergy Main LV systems LV switchgear. Rain protection roof, IP31, for WxD=1000x600mm, grey Canopy, ventilated with offset screen frame, two piece, including mounting material, steel plate, powder-spray painted, RAL 7035, IP31, width 1000mm, depth 600 mm

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller rain protection roof (XAD1006) is a sloped overhead shield designed to mount on top of industrial enclosures, deflecting moisture, dust, and debris away from the cabinet ceiling. These protective roofs are standard additions for electrical control boards operating in demanding industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for roof planking (EF009584): Yes
  • Suitable for bottom planking (EF009585): No
  • Width (EF000008): 500 mm
  • Height (EF000040): 85 mm
  • Depth (EF000049): 920 mm
  • Suitable for enclosure building width (EF000326): 1000 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • With de-aeration (EF001161): Yes
  • Suitable for outdoor set-up (EF005774): No
  • With cable entry (EF000325): No

More info

▲

General specifications

Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283814
Model Code
XAD1006
EAN
4015082838140
Product Length/Depth
920 mm
Product Height
85 mm
Product Width
500 mm
Product Weight
12 kg
Compliances
RoHS conform

Product specifications

Used with
Enclosure 2000 x 800 mm
Fitted with:
De-aeration
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
1000 mm
Material
Steel
Suitable for
Roof planking

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
