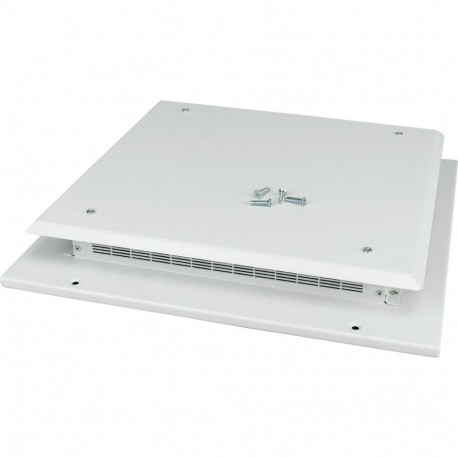

XAD0406 283485 Y7-283485 EATON ELECTRIC Rain protection roof, IP31, for WxD 425x600mm
XAD0406
283485
Y7-283485
EATON - MOELLER
1 Pcs.
Rain protection roof, IP31, for WxD=425x600mm
XAD0406
Eaton xEnergy Main LV systems LV switchgear. Rain protection roof, IP31, for WxD=425x600mm, grey
Canopy, ventilated with offset screen frame, two piece, including mounting material, steel plate, powder-spray painted, RAL 7035, IP31, width 425mm, depth 600 mm
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
283485
Model Code
XAD0406
EAN
4015082834852
Product Length/Depth
495 mm
Product Height
90 mm
Product Width
340 mm
Product Weight
4.2 kg
Compliances
RoHS conform
Product specifications
Fitted with:
De-aeration
Surface finishing
Powder coating
Color
Gray
RAL-number
7035
Suitable for enclosure building length/depth
600 mm
Suitable for enclosure building width
425 mm
Material
Steel
Suitable for
Roof planking
Bottom planking
Bottom planking
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | Yes |
| Suitable for bottom planking (EF009585) | Yes |
| Width (EF000008) | 340 mm |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 495 mm |
| Suitable for enclosure building width (EF000326) | 425 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | Yes |
| Suitable for outdoor set-up (EF005774) | No |
| With cable entry (EF000325) | No |
