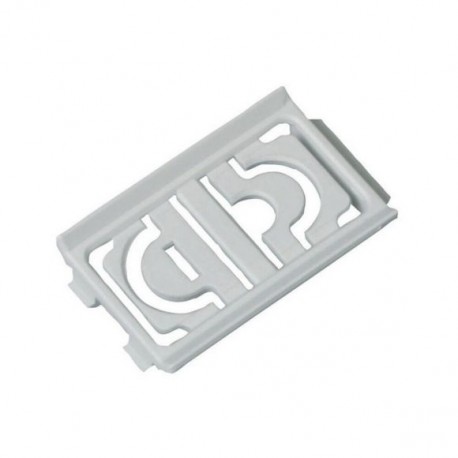

EATON - MOELLER DILM65-XIP2X DILM65-XIP2X 106491 Y7-106491 EATON ELECTRIC Cover, opening DILM4065 connection, (8unit) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DILM65-XIP2X 106491 Y7-106491 EATON ELECTRIC Cover, opening DILM4065 connection, (8unit)

DILM65-XIP2X

106491

Y7-106491

EATON - MOELLER

8 Pcs.

Cover, opening DILM4065 connection, (8unit) DILM65-XIP2X Eaton Moeller® series DILM Cover, connection opening DILM40-65, (8unit) Mountable busbar tag shroud without tools

Automation > Accessories/spare parts for low-voltage switch technology
Contactors up to 170A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series DILM terminal cover
Catalog Number
106491
Model Code
DILM65-XIP2X
EAN
4015081062607
Product Length/Depth
5 mm
Product Height
25.5 mm
Product Width
15 mm
Product Weight
0.46 g
Certifications
UL/CSA certification not required

General

Accessory/spare part type
Cover
Product category
Accessories
Used with
DILM80 up to DILM170

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
0 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 106491 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Cover
Accessory (EF013236) Yes
Spare part (EF013237) No
