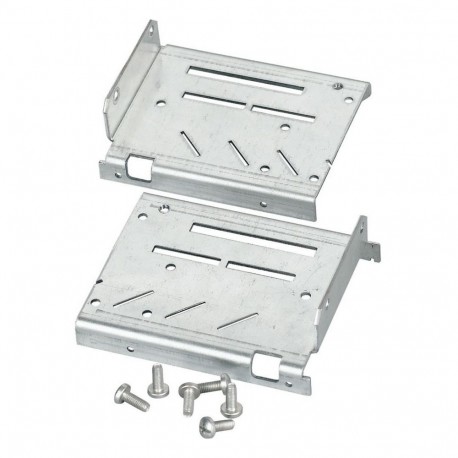

EATON - MOELLER BPZ-CTS-S BPZ-CTS-S 106445 Y7-106445 EATON ELECTRIC Corner tower kit View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPZ-CTS-S 106445 Y7-106445 EATON ELECTRIC Corner tower kit

BPZ-CTS-S

106445

Y7-106445

EATON - MOELLER

1 Pcs.

Corner tower kit BPZ-CTS-S Eaton xEnergy Basic LV systems Low voltage switchgear. Corner tower kit, short Corner tower kit, BPZ-CTS-S, short, pair (for left and right), incl. screws, directly mounted on BP-MF base frame, for mounting BPZ-MSW assembly side panels in wall-mounting and floor standing distribution boards, with pre-drilled holes for mounting the BPZ-TSB terminal support rail. Short corner tower for assembly in MSW-configuration floor standing distribution boards or partitioned configurations - if using short BPZ-CTS-S corner towers, the cutout in the corner tower must be facing inwards. Equipment supplied: 2 corner towers (for left and right), various mounting accessories

Automation > Accessories/spare parts for small distribution board
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for multi-bay panel layouts, this Eaton Moeller corner tower kit facilitates the rigid joining and alignment of modular enclosure assemblies. Corner kits and structural framing parts are commonly deployed in industrial automation setups to build expansive control center line-ups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): Yes
  • Spare part (EF013237): No

More info

▲

General specifications

Product Name
Eaton xEnergy Basic other accessory
Catalog Number
106445
Model Code
BPZ-CTS-S
EAN
4015081062157
Product Length/Depth
130 mm
Product Height
100 mm
Product Width
70 mm
Product Weight
0.4 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Accessory/spare part type
Other
Accessory

Technical data - mechanical

Mounting method
Floor standing distribution board
Material
Sheet steel

Additional information

Functions
Additional equipment
