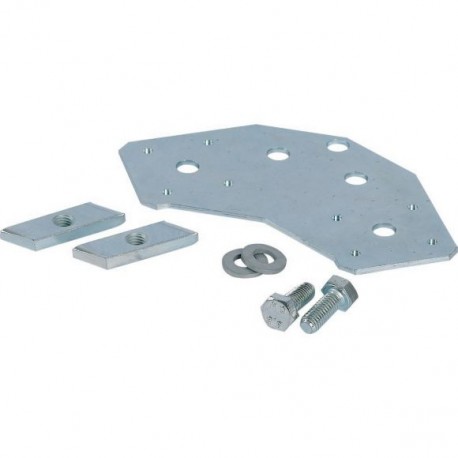

EATON - MOELLER EVB-ID EVB-ID 002299 Y7-2299 EATON ELECTRIC Corner plate, for mounting frame profile, CI system View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EVB-ID 002299 Y7-2299 EATON ELECTRIC Corner plate, for mounting frame profile, CI system

EVB-ID

002299

Y7-2299

EATON - MOELLER

10 Pcs.

Corner plate, for mounting frame profile, CI system Eaton xEnergy Safety Ci LV systems LV switchgear. Corner plate, for mounting frame profile, CI system Corner plate for CI mounting frame profiles, galvanized steel

Automation > Component for installation (switchgear cabinet)
Insulating Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Corner plate, for mounting frame profile, CI system produced by Eaton Moeller, part number EVB-ID, reinforces structural joints and connection angles within modular industrial enclosure frameworks. These brackets maintain square alignment under heavy operational loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Fastening profile
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 110 mm
  • Height (EF000040): 110 mm
  • Depth (EF000049): 25 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Safety Ci mounting profile fixing element
Catalog Number
002299
Model Code
EVB-ID
EAN
4015080022992
Product Length/Depth
25 mm
Product Height
110 mm
Product Width
110 mm
Product Weight
0.361 kg
Compliances
RoHS conform
Certifications
CE
Catalog Notes
Including fixing sundries

Product specifications

Special features
Including fixing sundries
Type
Accessory/spare part type
Corner plate for wall-mounting and floor-standing distribution boards
Used with
NZM2...?NA Series, NS2...?NA Series, NZM3...?NA Series, NS3...?NA Series
Horizontal and vertical sections, for the connection of them
Distribution board assembly
Accessory
CI insulated enclosure
NZM2...-NA Series, NS2...-NA Series, NZM3...-NA Series, NS3...-NA Series
Color
Other
Load capacity - max
0 kg
RAL-number
0
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Metal
Model
Fastening profile
Functions
Distribution board assembly

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
