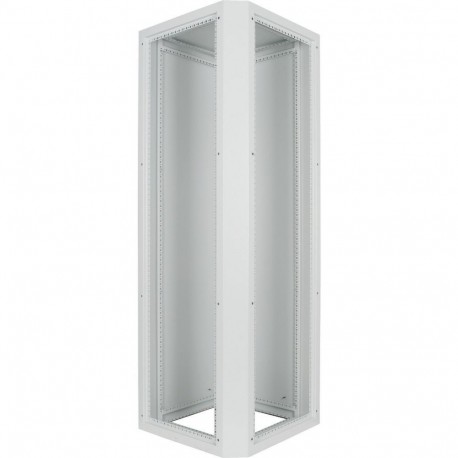

EATON - MOELLER XLC2044 XLC2044 114795 Y7-114795 EATON ELECTRIC 114795 XVTL-CF/S-4/4-20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XLC2044 114795 Y7-114795 EATON ELECTRIC 114795 XVTL-CF/S-4/4-20

XLC2044

114795

Y7-114795

EATON - MOELLER

1 Pcs.

114795 XVTL-CF/S-4/4-20 XLC2044 XLC2044 - Corner frame, steel, grey, HxWxD=2000x450x450mm, grey Corner frame, steel, grey, HxWxD=2000x450x450mm, grey, inlcluding top plate and side walls in RAL 7035 structure finish

Automation > Enclosure/switchgear cabinet (empty)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Corner frame, steel, grey, HxWxD=2000x450x450mm, grey
Corner frame, steel, grey, HxWxD=2000x450x450mm, grey, inlcluding top plate and side walls in RAL 7035 structure finish

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Enclosure/switchgear cabinet (empty) (EC000261)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Electrical cabinet (empty) / Electrical cabinet ([email protected] [AGZ056016])
Width
450 mm
Height
2000 mm
Depth
450 mm
Material
Steel
Material quality
Other
Surface finishing
Powder coating
Colour
Grey
RAL-number
7035
With mounting plate
No
Mounting plate depth-adjustable
No
Number of locks
0
Floor installation possible
Yes
Wall fastening possible
Yes
Wall build in
No
Pole fastening
No
Tackable
Yes
Number of doors
0
Suitable for metrical mounting
Yes
Suitable for outdoor set-up
No
Pitched roof
No
EMC-version
Yes
With glazed door
No
With ventilation door
No
With backside door
No
Impact strength
IK10
Degree of protection (IP)
IP55
Degree of protection (NEMA)

ETIM for 114795 Cabinets and enclosures (EC000261)
Feature Name Feature Value
Width (EF000008) 475 mm
Height (EF000040) 475 mm
Depth (EF000049) 2025 mm
Material (EF002169) Steel
Material quality (EF001257) Other
Surface finishing (EF006569) Powder coated
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Freestanding (EF020363) No
Floor standing wall model (EF015208) Yes
Suitable for wall mounting (EF000664) Yes
Corner model (EF020814) No
Intermediate mounting (EF022994) No
Couplable (EF001229) Yes
With mounting plate (EF000118) No
Mounting plate depth-adjustable (EF006054) No
Suitable for wall built-in (EF007536) No
Pole fastening (EF009582) No
With door (EF009169) No
Number of doors (EF000122) 0
With glazed door (EF001089) No
With ventilation door (EF006279) No
With rear door (EF007381) No
Number of locks (EF000123) 0
With cover (EF007965) No
Transparent cover (EF011401) No
Suitable for metrical mounting (EF005823) Yes
Pitched roof (EF009278) No
Pre-stamping (EF001039) No
EMC-version (EF001062) Yes
Impact strength (EF004293) IK10
Degree of protection (IP) (EF005474) IP55
Degree of protection (NEMA) (EF011959) 4X
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) 536 W
Max. permissible load of the enclosure according to IEC 62208 (EF014987) 5000 N
Max. permissible load of the door(s) according to IEC 62208 (EF014988) 1000 N
Max. permissible load of the mounting plate according to IEC 62208 (EF014989) 4000 N
