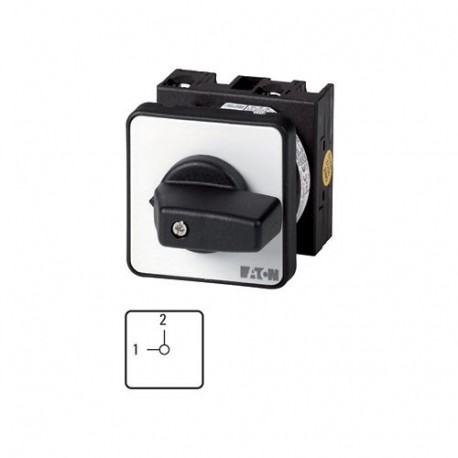

EATON - MOELLER T0-3-15543/E T0-3-15543/E 098839 Y7-98839 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: USV-NETZ, 90.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15543/E 098839 Y7-98839 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: USV-NETZ, 90..

T0-3-15543/E

098839

Y7-98839

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 20 A, front plate: USV-NETZ, 90 °, maintained, flush mounting Switch Switch 6 pole 20 A Indicator plate: USV-NETZ 90° Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, Without 0 (Off) position, USV-NETZ, Design number 15543

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a Eaton Moeller T0-3-15543/E changeover switch, this device allows operators to manually reroute electrical current between primary feeds and backup power grids in control panels. It is commonly implemented in facility management and automated systems requiring reliable source selection.

All costs, stock availability, and lead times are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-3-15543/E
  • Catalogue code: 098839

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
098839
Model Code
T0-3-15543/E
EAN
4015080988397
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.127 kg
Certifications
UL Category Control No.: NLRV
IEC/EN 60947-3
CE
IEC/EN 60947
UL 60947-4-1
UL
VDE 0660
CSA
CSA File No.: 012528
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL File No.: E36332
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
