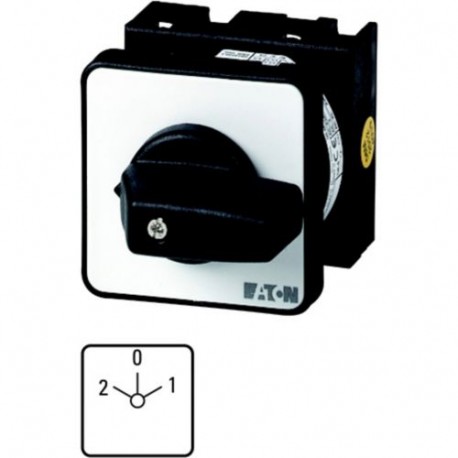

T0-3-15423/EZ 036482 Y7-36482 EATON ELECTRIC Changeoverswitches, Contacts: 6, 20 A, front plate: 2-0-1, 45 °..
T0-3-15423/EZ
036482
Y7-36482
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller T0-3-15423/EZ changeoverswitch provides reliable manual switching control for industrial circuits and machinery. Rotary changeoverswitches are commonly deployed in electrical panels to redirect power flows, change operational modes, or manage multi-position circuit configurations safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60204
CSA-C22.2 No. 94
CSA
IEC/EN 60947
VDE 0660
UL File No.: E36332
IEC/EN 60947-3
CSA File No.: 012528
UL
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
