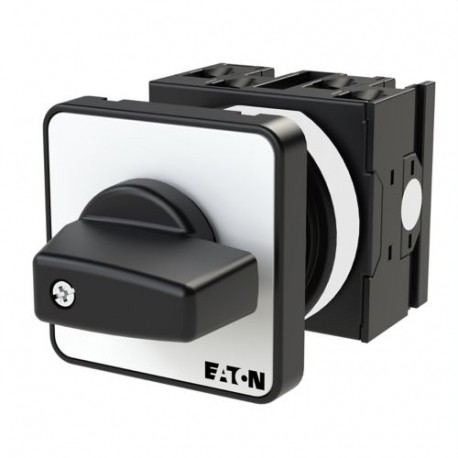

T0-2-8182/E 011700 Y7-11700 EATON ELECTRIC Spring-return switch, Contacts: 4, 20 A, front plate: START 1-0-2..
T0-2-8182/E
011700
Y7-11700
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller spring-return switch (part number T0-2-8182/E) provides momentary control action for starting or shifting operational modes in industrial machinery. The spring-return mechanism automatically brings the actuator back to a baseline position upon release.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): On/Off switch
- Number of poles (EF001391): 4
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 5
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
IEC/EN 60947
UL File No.: E36332
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL 60947-4-1
IEC/EN 60204
CSA
CSA-C22.2 No. 60947-4-1-14
UL
CE
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60947-3
