View larger
Images are for illustrative purposes only. Please refer to data sheet for details

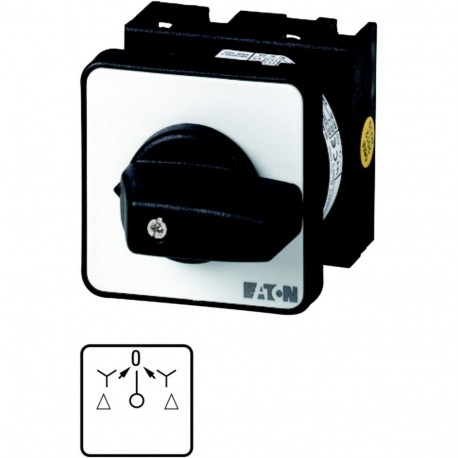

T0-2-8181/E 011694 Y7-11694 EATON ELECTRIC Spring-return switch, Contacts: 4, 20 A, front plate: D-Y 0 Y-D, ..
T0-2-8181/E
011694
Y7-11694
EATON - MOELLER
1 Pcs.
Spring-return switch, Contacts: 4, 20 A, front plate: D-Y>0
Switch with return; 4 poles; 20 A; Indicator plate: D-Y>0
Eaton Moeller® series T0 Spring-return switch, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 45 °, maintained, With 0 (Off) position, with spring-return from both directions to 0, D-Y>0
Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, with spring-return from both directions to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: D-Y>0
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series T0 Spring-return switch
Catalog Number
011694
Model Code
T0-2-8181/E
EAN
4015080116943
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
VDE 0660
IEC/EN 60204
UL Category Control No.: NLRV
UL File No.: E36332
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CE
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 94
UL
UL 60947-4-1
IEC/EN 60204
UL Category Control No.: NLRV
UL File No.: E36332
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CE
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 94
UL
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
| Feature Name | Feature Value |
|---|---|
| Type of switch (EF003496) | On/Off switch |
| Number of poles (EF001391) | 4 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 20 A |
| Number of switch positions (EF000231) | 5 |
| With zero (off) position (EF001416) | Yes |
| With retraction in 0-position (EF002428) | Yes |
| Device construction (EF008240) | Built-in device |
| Width in number of modular spacings (EF002950) | 0 |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Toggle |
| Front shield size (EF007176) | 48x48 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
