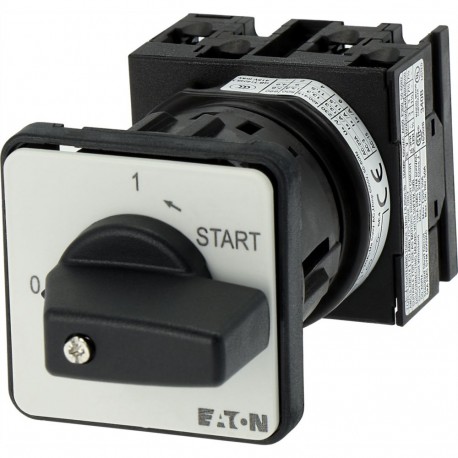

EATON - MOELLER T0-2-15512/EZ T0-2-15512/EZ 036486 Y7-36486 EATON ELECTRIC ON-OFF button, Contacts: 4, Spring-return in START position, 20.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15512/EZ 036486 Y7-36486 EATON ELECTRIC ON-OFF button, Contacts: 4, Spring-return in START position, 20..

T0-2-15512/EZ

036486

Y7-36486

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 4, Spring-return in START position, 20 A, front plate: 0-1 ON-OFF pushbutton switch 4-pole 20 A Indicator plate: 0-1 Eaton Moeller® series T0 ON-OFF button, T0, 20 A, center mounting, 2 contact unit(s), Contacts: 4, Spring-return in START position, 90 °, maintained, With 0 (Off) position, With spring-return to 1, 0-1 ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Spring-return: Spring-return in START position, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, With spring-return to 1, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number T0-2-15512/EZ is an ON-OFF button designed to safely initiate and interrupt electrical circuits in industrial machinery. Spring-return mechanisms ensure proper control by resetting the actuator immediately after operator input.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory ON OFF button
Catalog Number
036486
Model Code
T0-2-15512/EZ
EAN
4015080364863
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
CE
CSA-C22.2 No. 60947-4-1-14
UL
CSA
IEC/EN 60204
CSA-C22.2 No. 94
UL 60947-4-1
UL File No.: E36332
CSA File No.: 012528
UL Category Control No.: NLRV
IEC/EN 60947-3
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
