EATON - MOELLER T0-2-15512/E T0-2-15512/E 034113 Y7-34113 EATON ELECTRIC ON-OFF button, Contacts: 4, Spring-return in START position, 20 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15512/E 034113 Y7-34113 EATON ELECTRIC ON-OFF button, Contacts: 4, Spring-return in START position, 20 ..

T0-2-15512/E

034113

Y7-34113

EATON - MOELLER

1 Pcs.

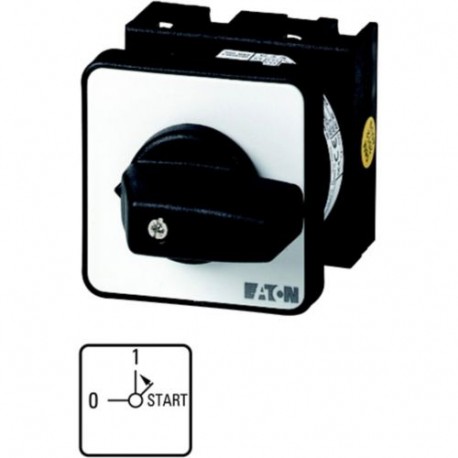

ON-OFF button, Contacts: 4, Spring-return in START position, 20 A, front plate: 0-1 ON-OFF pushbutton switch 4-pole 20 A Indicator plate: 0-1 Eaton Moeller® series T0 ON-OFF button, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, Spring-return in START position, 90 °, maintained, With 0 (Off) position, With spring-return to 1, 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a Eaton Moeller T0-2-15512/E ON-OFF button switch, this spring-return device manages safe circuit activation and interruption in industrial machinery. Spring-return mechanisms ensure operators intentionally hold or engage power states where safety protocols demand it.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-2-15512/E
  • Catalogue code: 034113

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory ON OFF button
Catalog Number
034113
Model Code
T0-2-15512/E
EAN
4015080341130
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
UL 60947-4-1
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CE
UL Category Control No.: NLRV
CSA File No.: 012528
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA
IEC/EN 60204
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
