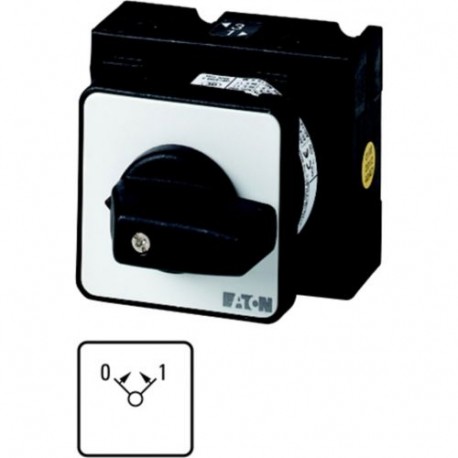

T0-2-15367/EZ 098183 Y7-98183 EATON ELECTRIC ON-OFF button, Contacts: 4, 20 A, front plate: 0 1, 45 °, momen..
T0-2-15367/EZ
098183
Y7-98183
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller ON-OFF button, identified as part number T0-2-15367/EZ, is a spring-return rotary control component utilized for momentary switching actions and circuit activation in electrical machinery. Maintenance personnel and operators rely on these devices for safe, controlled impulses within control panels.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): On/Off switch
- Number of poles (EF001391): 2
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): Yes
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA-C22.2 No. 60947-4-1-14
CSA
CE
UL Category Control No.: NLRV
CSA Class No.: 3211-05
UL 60947-4-1
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947-3
UL
