> EATON - MOELLER > Disconnectors and Cam Switches > 095810

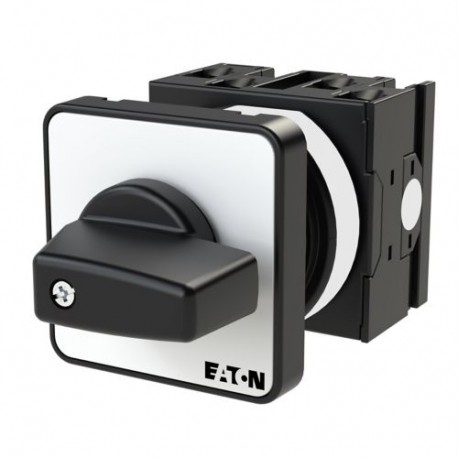

EATON - MOELLER T0-2-15367/E T0-2-15367/E 095810 Y7-95810 EATON ELECTRIC ON-OFF button, Contacts: 4, 20 A, front plate: 0 1, 45 °, moment.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15367/E 095810 Y7-95810 EATON ELECTRIC ON-OFF button, Contacts: 4, 20 A, front plate: 0 1, 45 °, moment..

T0-2-15367/E

095810

Y7-95810

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 4, 20 A, front plate: 0><1, 45 °, momentary, flush mounting ON-OFF pushbutton switch 4-pole 20 A Indicator plate: 0><1 45° Eaton Moeller® series T0 ON-OFF button, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary, With 0 (Off) position, with spring-return from both directions, 0><1, Design number 15367 ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0><1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory ON OFF button
Catalog Number
095810
Model Code
T0-2-15367/E
EAN
4015080958109
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
UL File No.: E36332
VDE 0660
CSA
IEC/EN 60947-3
UL Category Control No.: NLRV
CE
IEC/EN 60947
CSA-C22.2 No. 94
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CSA Class No.: 3211-05
UL
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 095810 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) On/Off switch
Number of poles (EF001391) 2
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 20 A
Number of switch positions (EF000231) 2
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) Yes
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
