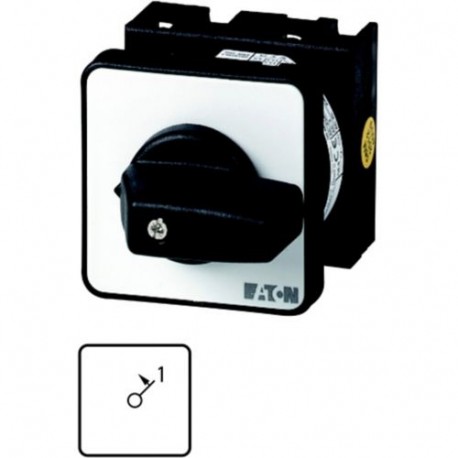

T0-2-15323/EZ 026993 Y7-26993 EATON ELECTRIC On switches, Contacts: 3, Spring-return in position 1, 20 A, fr..
T0-2-15323/EZ
026993
Y7-26993
EATON - MOELLER
1 Pcs.
On switches, Contacts: 3, Spring-return in position 1, 20 A, front plate: I<1, 45 °, momentary, centre mounting
Gear switch; 3 poles; 20 A; Indicator plate: I<1; 45 °;
Eaton Moeller® series T0 On switches, T0, 20 A, center mounting, 2 contact unit(s), Contacts: 3, Spring-return in position 1, 45 °, momentary, With spring-return from 1, I<1, Design number 15323
On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Spring-return: Spring-return in position 1, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With spring-return from 1, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: I<1
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series T0 On switch
Catalog Number
026993
Model Code
T0-2-15323/EZ
EAN
4015080269939
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
CSA
CE
IEC/EN 60947-3
UL 60947-4-1
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60204
UL
UL Category Control No.: NLRV
CE
IEC/EN 60947-3
UL 60947-4-1
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60204
UL
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
| Feature Name | Feature Value |
|---|---|
| Type of switch (EF003496) | On/Off switch |
| Number of poles (EF001391) | 3 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 20 A |
| Number of switch positions (EF000231) | 2 |
| With zero (off) position (EF001416) | No |
| With retraction in 0-position (EF002428) | No |
| Device construction (EF008240) | Built-in device |
| Width in number of modular spacings (EF002950) | 0 |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Toggle |
| Front shield size (EF007176) | 48x48 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
