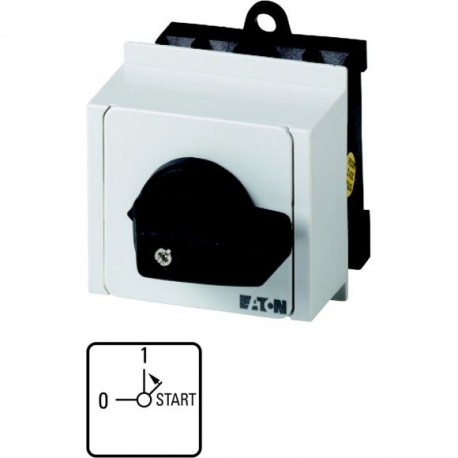

EATON - MOELLER T0-1-15511/IVS T0-1-15511/IVS 026994 Y7-26994 EATON ELECTRIC ON-OFF button, Contacts: 2, Spring-return in START position, 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15511/IVS 026994 Y7-26994 EATON ELECTRIC ON-OFF button, Contacts: 2, Spring-return in START position, 2..

T0-1-15511/IVS

026994

Y7-26994

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 2, Spring-return in START position, 20 A, front plate: 0-1 Push button switch ON-OFF; 2 poles; 20 A; Indicator plate: 0-1 Eaton Moeller® series T0 ON-OFF button, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 2, Spring-return in START position, 90 °, maintained, 0-1 ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Spring-return: Spring-return in START position, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, With spring-return to 1, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory ON OFF button
Catalog Number
026994
Model Code
T0-1-15511/IVS
EAN
4015080269946
Product Length/Depth
82 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.106 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CE
CSA-C22.2 No. 94
CSA File No.: 012528
UL File No.: E36332
IEC/EN 60947-3
CSA
UL 60947-4-1
IEC/EN 60204
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CSA Class No.: 3211-05
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 026994 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) On/Off switch
Number of poles (EF001391) 2
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 20 A
Number of switch positions (EF000231) 2
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) Yes
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 4
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP30
Degree of protection (NEMA), front side (EF011961) 2
