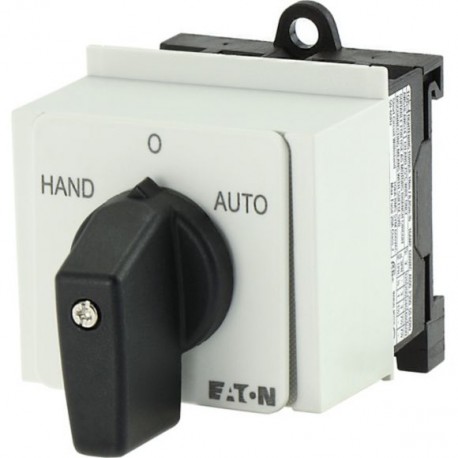

EATON - MOELLER T0-1-15431/IVS T0-1-15431/IVS 026991 Y7-26991 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: HAND-0-AUT.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15431/IVS 026991 Y7-26991 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: HAND-0-AUT..

T0-1-15431/IVS

026991

Y7-26991

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 20 A, front plate: HAND-0-AUTO, 45 °, maintained, service distribution board mounting Switch Switch; 2 poles; 20 A; Indicator plate: Hand-0-AUTO; 45 Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 2, 45 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15431

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller changeover switch provides dependable multi-position circuit selection, frequently employed to toggle control modes in automated machinery. Panel builders rely on these reliable rotary components to direct electrical signals between manual, off, and automatic operational states.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-1-15431/IVS
  • Catalogue code: 026991
  • Catalogue title: T0-1-15431/IVS 026991 Y7-26991 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: HAND-0-AUT..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Changeover switch Catalog Number 026991 Model Code T0-1-15431/IVS EAN 4015080269915 Product Length/Depth 82 mm Product Height 55 mm Product Width 54 mm Product
  • Manufacturer summary: Changeoverswitches, Contacts: 2, 20 A, front plate: HAND-0-AUTO, 45 °, maintained, service distribution board mounting Switch Switch; 2 poles; 20 A; Indicator plate: Hand-0-AUTO; 45 Eaton Moeller® series T0 Changeoverswi

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
026991
Model Code
T0-1-15431/IVS
EAN
4015080269915
Product Length/Depth
82 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.106 kg
Certifications
UL File No.: E36332
VDE 0660
CE
CSA
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL
IEC/EN 60947-3
CSA File No.: 012528
IEC/EN 60947
CSA Class No.: 3211-05
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
