> EATON - MOELLER > Disconnectors and Cam Switches > 019872

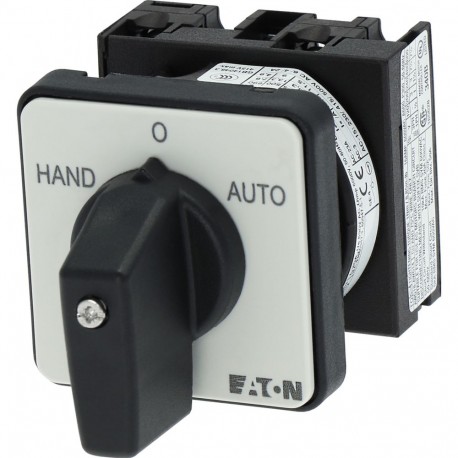

EATON - MOELLER T0-1-15431/E T0-1-15431/E 019872 Y7-19872 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: HAND-0-AUTO,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15431/E 019872 Y7-19872 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: HAND-0-AUTO,..

T0-1-15431/E

019872

Y7-19872

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 20 A, front plate: HAND-0-AUTO, 45 °, maintained, flush mounting Switch Switch; 2 poles; 20 A; Indicator plate: Hand-0-AUTO; 45 Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 1 contact unit(s), Contacts: 2, 45 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15431 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: HAND-0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
019872
Model Code
T0-1-15431/E
EAN
4015080198727
Product Length/Depth
76 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.083 kg
Certifications
CSA-C22.2 No. 94
CSA Class No.: 3211-05
IEC/EN 60947-3
CE
UL
IEC/EN 60947
IEC/EN 60204
CSA
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
VDE 0660
UL 60947-4-1
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 019872 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Reverser
Number of poles (EF001391) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 20 A
Number of switch positions (EF000231) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
