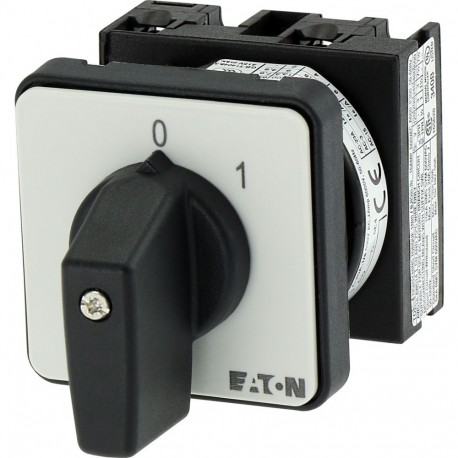

EATON - MOELLER T0-1-15402/E T0-1-15402/E 053092 Y7-53092 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 45 °, main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15402/E 053092 Y7-53092 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 45 °, main..

T0-1-15402/E

053092

Y7-53092

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 45 °, maintained, flush mounting ON-OFF 2-pole disconnector switch 20 A Indicator plate: 0-1 45 Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, flush mounting, 1 contact unit(s), Contacts: 2, 45 °, maintained, With 0 (Off) position, 0-1, Design number 15402 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-1-15402/E ON-OFF switch serves as a manual disconnecting and power control device for machinery circuits and electrical enclosures. These switches provide safe, direct isolation of electrical loads during maintenance or normal operational shutdowns.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
053092
Model Code
T0-1-15402/E
EAN
4015080530923
Product Length/Depth
76 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.083 kg
Certifications
CSA
IEC/EN 60947
UL
UL 60947-4-1
IEC/EN 60204
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA Class No.: 3211-05
VDE 0660
CSA File No.: 012528
UL Category Control No.: NLRV
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
