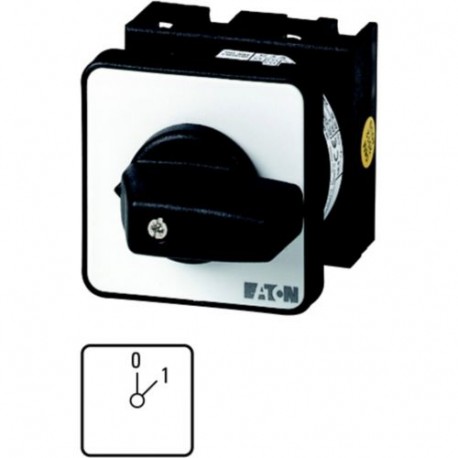

T0-1-15401/EZ 041227 Y7-41227 EATON ELECTRIC ON-OFF switches, Contacts: 1, 20 A, front plate: 0-1, 45 °, mai..
T0-1-15401/EZ
041227
Y7-41227
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An on-off switch is a manual switching device deployed in electrical distribution boards and machinery to safely connect or isolate main power supplies. The Eaton Moeller T0-1-15401/EZ component provides reliable circuit interruption for industrial automation systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): On/Off switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
VDE 0660
UL File No.: E36332
CSA Class No.: 3211-05
CSA
IEC/EN 60947
CE
UL
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CSA File No.: 012528
UL 60947-4-1
UL Category Control No.: NLRV
IEC/EN 60204
