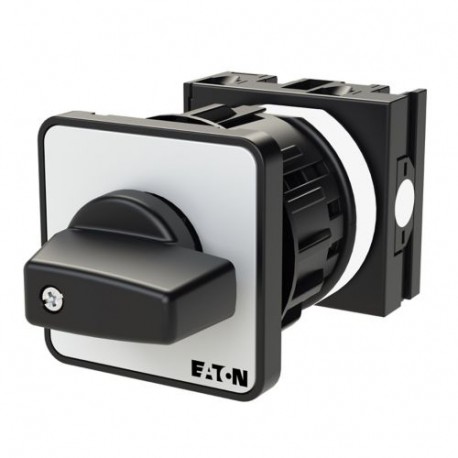

EATON - MOELLER T0-1-15352/EZ T0-1-15352/EZ 055469 Y7-55469 EATON ELECTRIC On switches, Contacts: 2, 20 A, front plate: I 0, 45 °, momenta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15352/EZ 055469 Y7-55469 EATON ELECTRIC On switches, Contacts: 2, 20 A, front plate: I 0, 45 °, momenta..

T0-1-15352/EZ

055469

Y7-55469

EATON - MOELLER

1 Pcs.

On switches, Contacts: 2, 20 A, front plate: I<0, 45 °, momentary, centre mounting 2-pole gear switch 20 A Indicator plate: I<0 45° Eaton Moeller® series T0 On switches, T0, 20 A, center mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, With spring-return from 0, I<0, Design number 15352 On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With spring-return from 0, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: I<0

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-1-15352/EZ on-switch facilitates rapid, manual actuation of electrical equipment within industrial enclosures. These compact rotary units serve as reliable local disconnects and power activation points across numerous machine building applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
055469
Model Code
T0-1-15352/EZ
EAN
4015080554691
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.101 kg
Certifications
IEC/EN 60947-3
UL Category Control No.: NLRV
UL 60947-4-1
IEC/EN 60204
IEC/EN 60947
CE
UL File No.: E36332
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
