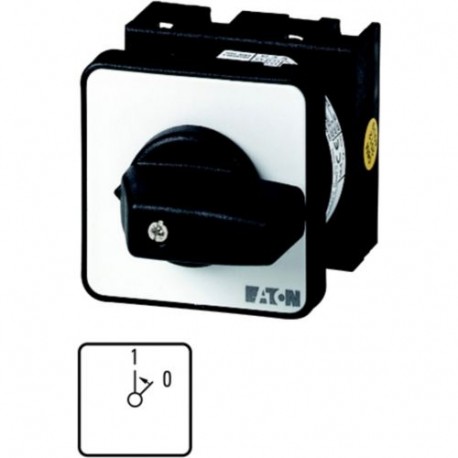

EATON - MOELLER T0-1-15331/EZ T0-1-15331/EZ 009221 Y7-9221 EATON ELECTRIC On switches, Contacts: 1, 20 A, front plate: 1 0, 45 °, momentar.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15331/EZ 009221 Y7-9221 EATON ELECTRIC On switches, Contacts: 1, 20 A, front plate: 1 0, 45 °, momentar..

T0-1-15331/EZ

009221

Y7-9221

EATON - MOELLER

1 Pcs.

On switches, Contacts: 1, 20 A, front plate: 1<0, 45 °, momentary, centre mounting 1 Pole 20 A Power Switch Indicator Plate: 1<0 45° Mounting Eaton Moeller® series T0 On switches, T0, 20 A, center mounting, 1 contact unit(s), Contacts: 1, 45 °, momentary, With 0 (Off) position, With spring-return to 1, 1<0, Design number 15331 On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, With spring-return to 1, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1<0

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller ON-OFF switch, designated as T0-1-15331/EZ, functions as a manual control device to initiate or interrupt electrical power supplies within machinery control circuits. Operators rely on this hardware to safely toggle operational states in manufacturing environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 1
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
009221
Model Code
T0-1-15331/EZ
EAN
4015080092216
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.101 kg
Certifications
CSA
UL
IEC/EN 60204
VDE 0660
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947-3
CSA Class No.: 3211-05
UL 60947-4-1
CE
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL Category Control No.: NLRV
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
