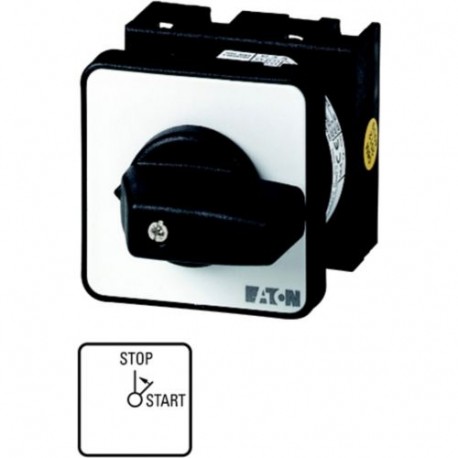

EATON - MOELLER T0-1-15311/E T0-1-15311/E 009206 Y7-9206 EATON ELECTRIC On switches, Contacts: 1, 20 A, front plate: STOP START, 90 °, mo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15311/E 009206 Y7-9206 EATON ELECTRIC On switches, Contacts: 1, 20 A, front plate: STOP START, 90 °, mo..

T0-1-15311/E

009206

Y7-9206

EATON - MOELLER

1 Pcs.

On switches, Contacts: 1, 20 A, front plate: STOP Gear switch 1 pole 20 A Indicator plate: STOP Eaton Moeller® series T0 On switches, T0, 20 A, flush mounting, 1 contact unit(s), Contacts: 1, 90 °, momentary, Without 0 (Off) position, With spring-return to STOP, STOP On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: momentary, Without 0 (Off) position, With spring-return to STOP, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: STOP

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller On switch, identified by part number T0-1-15311/E, functions as a manual control interface designed to initiate operational sequences within industrial circuits.

These specialized panel devices allow technicians to safely activate specific machinery functions or electrical pathways under normal load conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
009206
Model Code
T0-1-15311/E
EAN
4015080092063
Product Length/Depth
76 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.083 kg
Certifications
CSA Class No.: 3211-05
IEC/EN 60204
IEC/EN 60947-3
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 012528
VDE 0660
CE
UL
CSA
UL 60947-4-1
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
