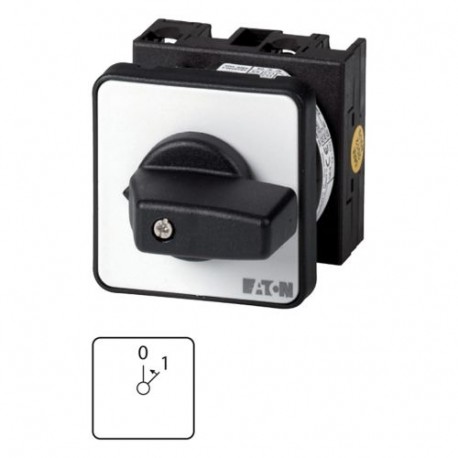

EATON - MOELLER T0-1-15301/EZ T0-1-15301/EZ 009195 Y7-9195 EATON ELECTRIC On switches, Contacts: 1, 20 A, front plate: 0 1, 45 °, momentar.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15301/EZ 009195 Y7-9195 EATON ELECTRIC On switches, Contacts: 1, 20 A, front plate: 0 1, 45 °, momentar..

T0-1-15301/EZ

009195

Y7-9195

EATON - MOELLER

1 Pcs.

On switches, Contacts: 1, 20 A, front plate: 0<1, 45 °, momentary, centre mounting Gear switch 1 pole 20 A Indicator plate: 0<1 45° Mounting Eaton Moeller® series T0 On switches, T0, 20 A, center mounting, 1 contact unit(s), Contacts: 1, 45 °, momentary, With 0 (Off) position, With spring-return to 0, 0<1, Design number 15301 On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, With spring-return to 0, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0<1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller on-off switch, specifically part number T0-1-15301/EZ, acts as a primary manual disconnect or operational controller for machinery circuits, allowing technicians to break or establish electrical power securely. These built-in rotary devices are commonly integrated into control panels for routine operational control and safety isolation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
009195
Model Code
T0-1-15301/EZ
EAN
4015080091950
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.101 kg
Certifications
CSA
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CE
UL 60947-4-1
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60204
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 94
VDE 0660
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
