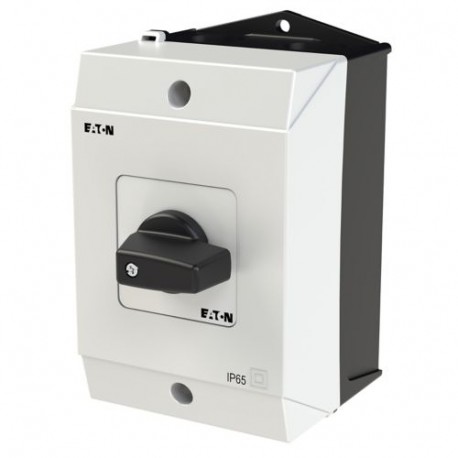

EATON - MOELLER T0-2-15303/I1 T0-2-15303/I1 222603 Y7-222603 EATON ELECTRIC On switches, Contacts: 3, 20 A, front plate: 0 1, 45 °, moment.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15303/I1 222603 Y7-222603 EATON ELECTRIC On switches, Contacts: 3, 20 A, front plate: 0 1, 45 °, moment..

T0-2-15303/I1

222603

Y7-222603

EATON - MOELLER

1 Pcs.

On switches, Contacts: 3, 20 A, front plate: 0<1, 45 °, momentary, surface mounting T0-2-15303/I1 Eaton Moeller® series T0 On switches, T0, 20 A, surface mounting, 2 contact unit(s), Contacts: 3, 45 °, momentary, With 0 (Off) position, With spring-return to 0, 0<1, Design number 15303 On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, With spring-return to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0<1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enclosed in a protective housing, this Eaton Moeller T0-2-15303/I1 on switch safely manages power distribution and motor starting functions in harsh environments. Housed control switches offer reliable local isolation and manual control directly at the machine site.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Surface mounted device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
222603
Model Code
T0-2-15303/I1
EAN
4015082226039
Product Length/Depth
137 mm
Product Height
102 mm
Product Width
80 mm
Product Weight
0.264 kg
Certifications
EN 60204
IEC 60947
EN 60947
VDE
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
