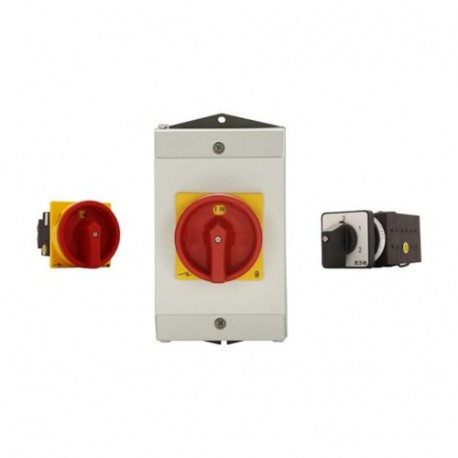

EATON - MOELLER T0-2-15907/I1/SVC(C,E,G-J) T0-2-15907/I1/SVC(C,E,G-J) 207097 Y7-207097 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Padlocking feat.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15907/I1/SVC(C,E,G-J) 207097 Y7-207097 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Padlocking feat..

T0-2-15907/I1/SVC(C,E,G-J)

207097

Y7-207097

EATON - MOELLER

1 Pcs.

Changeoverswitches, 4 pole, 20 A, Padlocking feature SVC, front plate AUTO-0-HAND T0-2-15907/I1/SVC(C,E,G-J) Eaton Moeller® series T0 Changeover switches, T0, 20 A, surface mounting, 4 pole, with black thumb grip and front plate, Padlocking feature SVC Changeover switch, Product range: Switch with locking mechanism, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, 4 pole, Padlocking feature SVC, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary/maintained, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, Notes: If the locking slide is interlocked with lock in HAND position, START can also be actuated without removing the lock, but not 0. , Only permissible when there is a separate OFF button, front plate: AUTO-0-HAND

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller changeover switch, designated by part number T0-2-15907/I1/SVC(C,E,G-J), directs electrical current between alternative circuits to safely manage power distribution or motor direction. These selector units are standard additions to industrial control enclosures requiring secure local operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 4
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Surface mounted device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
207097
Model Code
T0-2-15907/I1/SVC(C,E,G-J)
EAN
4015082070977
Product Length/Depth
137 mm
Product Height
102 mm
Product Width
80 mm
Product Weight
0.346 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
IEC/EN 60947
