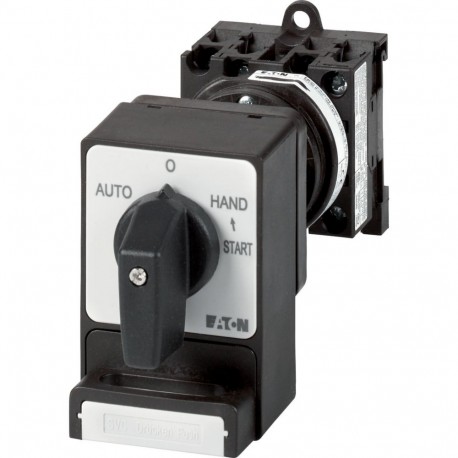

T0-2-15907/Z/SVC(C,E,G-J) 050980 Y7-50980 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Padlocking featur..
T0-2-15907/Z/SVC(C,E,G-J)
050980
Y7-50980
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
T0-2-15907/Z/SVC(C,E,G-J) 050980 Y7-50980 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Padlocking featur.. serves as a changeover switch in electrical panels to safely redirect power paths between alternative sources or alter circuit configurations under load. Such units are vital for comprehensive power distribution management.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Reverser
- Number of poles (EF001391): 4
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 4
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): Yes
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
