View larger
Images are for illustrative purposes only. Please refer to data sheet for details

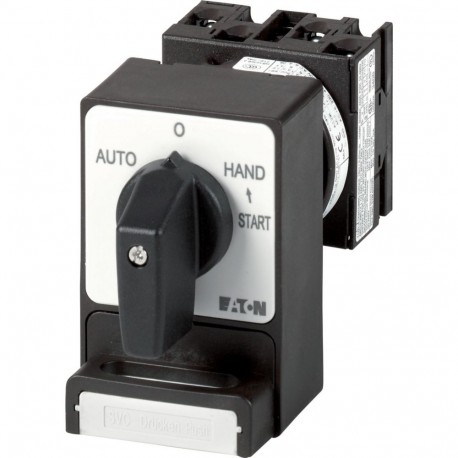

T0-2-15907/E/SVC(C,E,G-J) 044996 Y7-44996 EATON ELECTRIC Changeoverswitches, 4 pole, 20 A, Padlocking featur..
T0-2-15907/E/SVC(C,E,G-J)
044996
Y7-44996
EATON - MOELLER
1 Pcs.
Changeoverswitches, 4 pole, 20 A, Padlocking feature SVC, front plate AUTO-0-HAND
Switch 4-pole switch 20 A Padlock lock SVC Plate
Eaton Moeller® series T0 Changeover switches, T0, 20 A, flush mounting, 4 pole, with black thumb grip and front plate, Padlocking feature SVC
Changeover switch, Product range: Switch with locking mechanism, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, 4 pole, Padlocking feature SVC, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary/maintained, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, Notes: If the locking slide is interlocked with lock in HAND position, START can also be actuated without removing the lock, but not 0. , Only permissible when there is a separate OFF button, front plate: AUTO-0-HAND
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
044996
Model Code
T0-2-15907/E/SVC(C,E,G-J)
EAN
4015080449966
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.239 kg
Certifications
IEC/EN 60204
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
| Feature Name | Feature Value |
|---|---|
| Type of switch (EF003496) | Reverser |
| Number of poles (EF001391) | 4 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 20 A |
| Number of switch positions (EF000231) | 4 |
| With zero (off) position (EF001416) | Yes |
| With retraction in 0-position (EF002428) | No |
| Device construction (EF008240) | Built-in device |
| Width in number of modular spacings (EF002950) | 0 |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Toggle |
| Front shield size (EF007176) | 48x48 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
