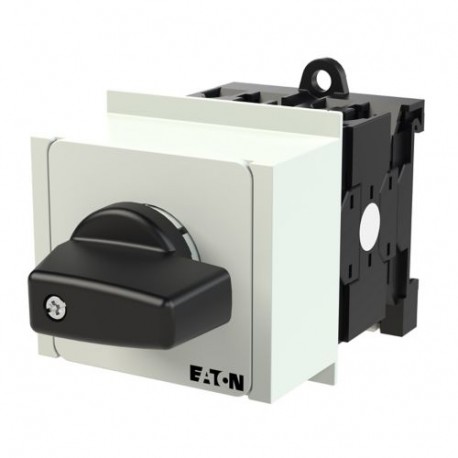

EATON - MOELLER T0-3-15391/IVS T0-3-15391/IVS 036484 Y7-36484 EATON ELECTRIC Universal control switches,Contacts 6,Stay-put switches with 3.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15391/IVS 036484 Y7-36484 EATON ELECTRIC Universal control switches,Contacts 6,Stay-put switches with 3..

T0-3-15391/IVS

036484

Y7-36484

EATON - MOELLER

1 Pcs.

Universal control switches,Contacts 6,Stay-put switches with 3 positions,20A,front plate: 2-0-1, 45 °, maintained, service distribution board mount. Universal control switch: 6 poles, 3 interlocking positions, 20 A Universal control switches, T0, 20 A, service distribution board mounting, 3 contact unit(s), Contacts: 6, Stay-put switches with 3 positions, 45 °, maintained, 2-0-1, Design number 15391 Universal control switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Spring-return: Stay-put switches with 3 positions, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 1 contact closed in each position, Additionally 1 contact closed in position 0 and 1, Additionally 1 contact closed in position 0 and 2, Additionally 1 contact closed in position 0 and 3 , 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2-0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A universal control switch from Eaton Moeller (part number T0-3-15391/IVS) is utilized for managing multiple circuits and operational states within complex electrical distribution and machinery setups.

Operators rely on these rugged built-in devices for dependable manual intervention, mode changes, and load management in control cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Group switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Universal control switch
Catalog Number
036484
Model Code
T0-3-15391/IVS
EAN
4015080364849
Product Length/Depth
101 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.155 kg
Certifications
IEC/EN 60947
UL 60947-4-1
CSA
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 94
CE
CSA Class No.: 3211-05
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CSA File No.: 012528
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
