T0-2-15323/IVS 031739 Y7-31739 EATON ELECTRIC On switches, Contacts: 3, Spring-return in position 1, 20 A, f..
T0-2-15323/IVS
031739
Y7-31739
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

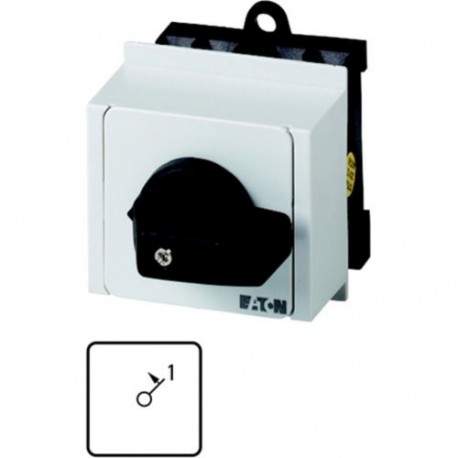

Executing momentary power commands in distribution boards is simplified with an on switch such as the Eaton Moeller T0-2-15323/IVS. Spring-return ON switches are commonly utilized where circuits must only remain energized while manual pressure is actively applied.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): On/Off switch
- Number of poles (EF001391): 3
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 4
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CE
CSA
IEC/EN 60204
UL
UL File No.: E36332
IEC/EN 60947-3
CSA-C22.2 No. 94
UL Category Control No.: NLRV
CSA File No.: 012528
VDE 0660
IEC/EN 60947
UL 60947-4-1
CSA Class No.: 3211-05
