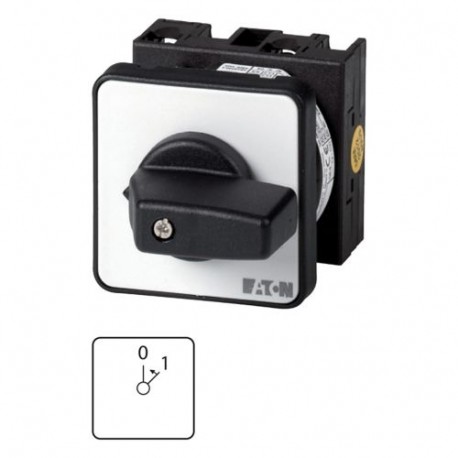

EATON - MOELLER T0-2-8206/E T0-2-8206/E 011718 Y7-11718 EATON ELECTRIC On switches, Contacts: 3, 20 A, front plate: 0-1, 45 °, momentary.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8206/E 011718 Y7-11718 EATON ELECTRIC On switches, Contacts: 3, 20 A, front plate: 0-1, 45 °, momentary..

T0-2-8206/E

011718

Y7-11718

EATON - MOELLER

1 Pcs.

On switches, Contacts: 3, 20 A, front plate: 0-1, 45 °, momentary, flush mounting Gear switch; 3 poles; 20 A; Indicator plate: 0-1; 45 °; Eaton Moeller® series T0 On switches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 3, 45 °, momentary, With 0 (Off) position, With spring-return to 0, 0-1, Design number 8206 On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, With spring-return to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T0-2-8206/E operates as a robust on-off switch designed for secure power isolation and circuit energization. On-off switches are essential components in electrical installations, providing manual control to connect or disconnect loads safely within industrial machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
011718
Model Code
T0-2-8206/E
EAN
4015080117186
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 94
UL 60947-4-1
VDE 0660
CSA Class No.: 3211-05
UL
CE
UL File No.: E36332
IEC/EN 60947-3
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
