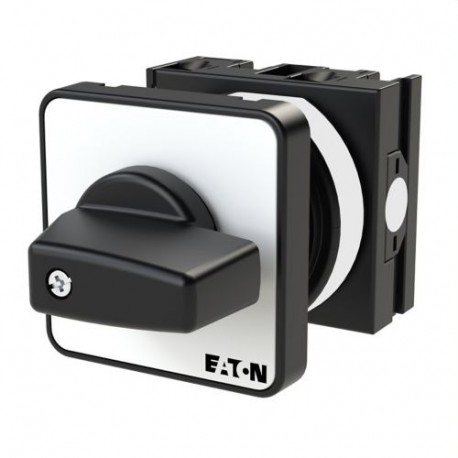

T0-1-15322/E 010382 Y7-10382 EATON ELECTRIC On switches, Contacts: 2, Spring-return in position 1, 20 A, fro..
T0-1-15322/E
010382
Y7-10382
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
On switches designated as T0-1-15322/E 010382 Y7-10382 EATON ELECTRIC provide manual disconnection and connection capabilities for industrial electrical circuits and machinery loads. These robust rotary devices are installed directly onto control panel doors or enclosures to allow operators safe physical control over main power distribution paths.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): On/Off switch
- Number of poles (EF001391): 2
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60947-3
IEC/EN 60947
CE
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60204
VDE 0660
UL
CSA
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
