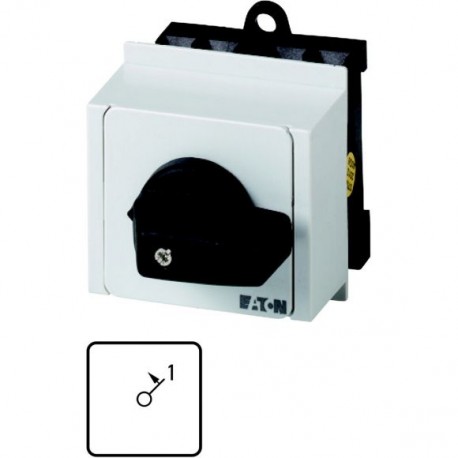

EATON - MOELLER T0-1-15322/IVS T0-1-15322/IVS 017501 Y7-17501 EATON ELECTRIC On switches, Contacts: 2, Spring-return in position 1, 20 A, f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15322/IVS 017501 Y7-17501 EATON ELECTRIC On switches, Contacts: 2, Spring-return in position 1, 20 A, f..

T0-1-15322/IVS

017501

Y7-17501

EATON - MOELLER

1 Pcs.

On switches, Contacts: 2, Spring-return in position 1, 20 A, front plate: I<1, 45 °, momentary, service distribution board mounting 2-pole 20 A gear switch Indicator plate: I<1 45° Eaton Moeller® series T0 On switches, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 2, Spring-return in position 1, 45 °, momentary, With spring-return from 1, I<1, Design number 15322 On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Spring-return: Spring-return in position 1, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: momentary, With spring-return from 1, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: I<1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for secure electrical disconnection, this Eaton Moeller on/off switch (T0-1-15322/IVS) interrupts power flow to specific machine zones during maintenance or regular operation. Panel builders integrate such devices into distribution boards for reliable circuit isolation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
017501
Model Code
T0-1-15322/IVS
EAN
4015080175018
Product Length/Depth
82 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.106 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
CSA File No.: 012528
UL File No.: E36332
UL
IEC/EN 60204
CSA
CSA Class No.: 3211-05
UL 60947-4-1
CE
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
